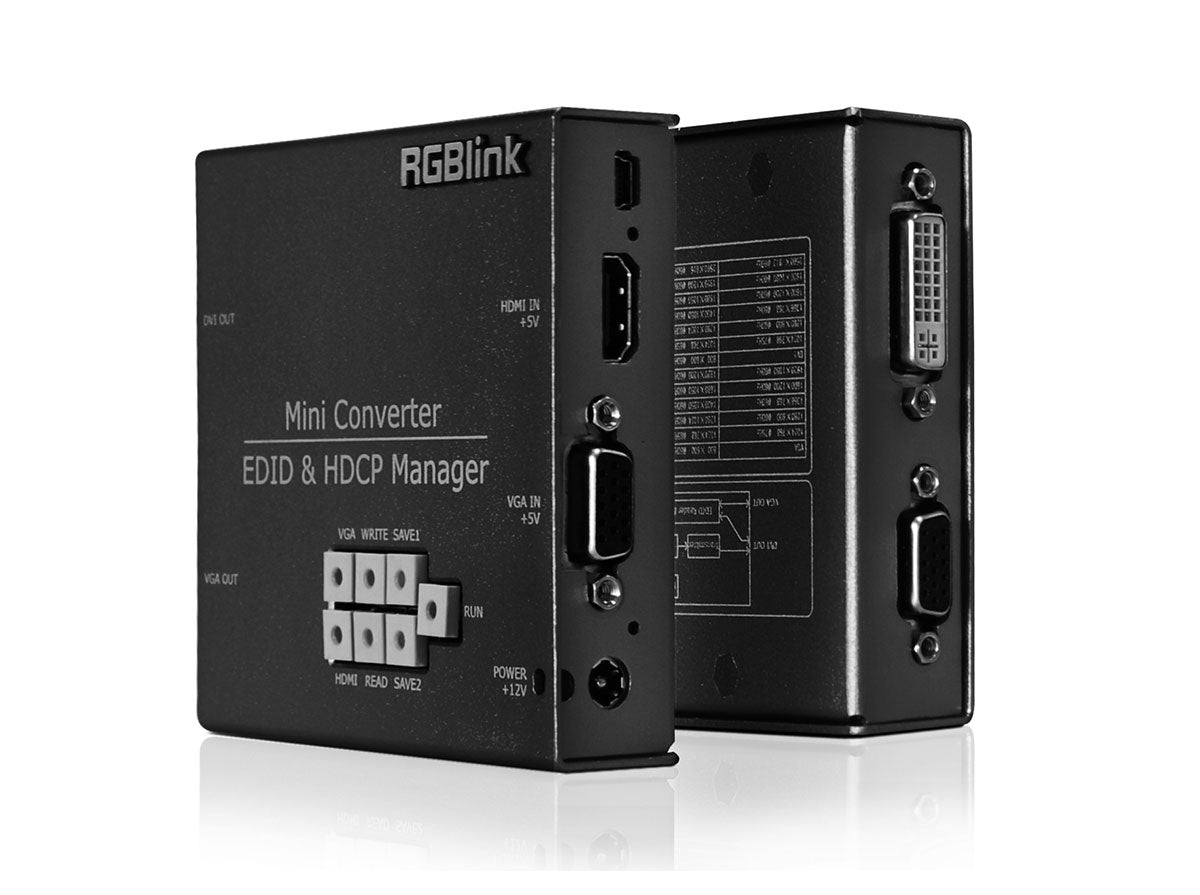

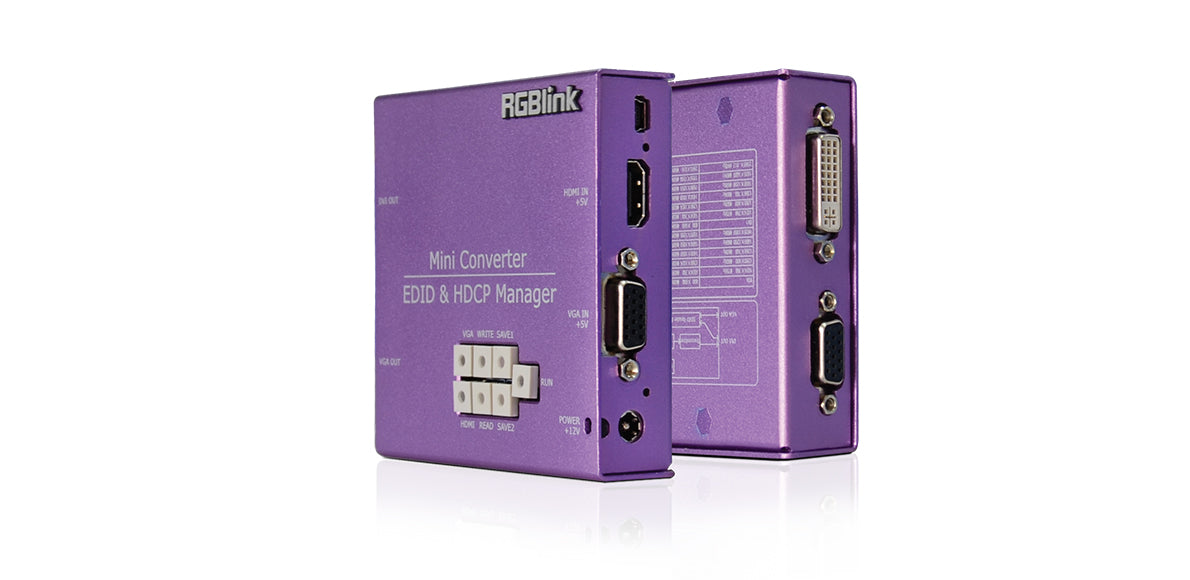

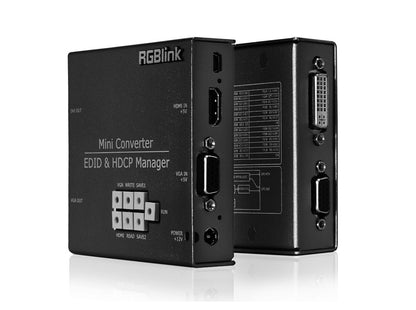

MSP Series - 221 EDID Manager

Brand: RGBlink
SKU: 650-0221-01-0
  • Unterstützt automatische EDID-Erkennung (EDID Auto Identification).
  • Ausgabeauflösungen bis zu 2560 × 816 werden unterstützt.
  • EDID-Dateien können direkt über den USB-Port eingelesen werden.
  • EDID-Kopierfunktion ermöglicht das Duplizieren der Eingangs-EDID auf andere Geräte.

Normaler Preis €0,00
Normaler Preis Verkaufspreis €0,00

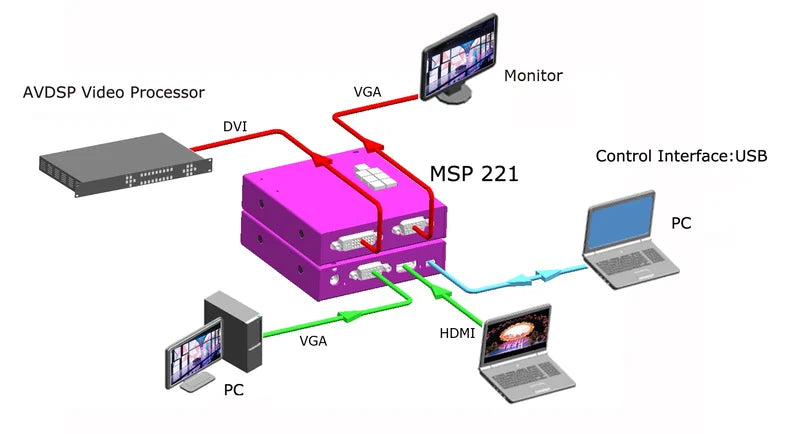

Der MSP221 ist ein EDID- und HDCP-Manager mit Eingängen für HDMI und VGA sowie Ausgängen für DVI und VGA.

Der MSP221 bietet automatische EDID-Erkennung und unterstützt Lesen-, Kopieren- und Schreibfunktionen direkt über die Bedienelemente an der Frontseite.
Zusätzlich kann das Gerät über USB konfiguriert werden.

Die Ausgangsauflösungen sind bis zu 2560×816 frei konfigurierbar.

Spezifikationen
Category Item Specification
Connectors
InputHDMI1 × HDMI
VGA1 × DB15 (VGA)
OutputDVI1 × DVI
VGA1 × DB15 (VGA)
Remote Control1 × USB mini-B
Power5.4 mm DC Socket
Performance
Input Resolutions SMPTE 625@25/50 (PAL) | 525@29.97/59.94 (NTSC) | 720p@50/59.94/60 | 1080p@50/59.94/60 | 1080i@50/59.94/60
VESA 800×600@60 | 1024×768@60 | 1280×768@60 | 1280×1024@60 | 1600×1200@60 | 1920×1080@60
Output Resolutions SMPTE 625@25/50 (PAL) | 525@29.97/59.94 (NTSC) | 1080p@50/59.94/60 | 1080i@50/59.94/60 | 720p@50/59.94/60 | 1280×720@23.98/24/25/29.97/30 | 1920×1080@23.98/24/25/29.97/30
VESA 800×600@60 | 1024×768@60 | 1280×720@60 | 1280×800@60 | 1280×1024@60 | 1360×768@60 | 1366×768@60 | 1400×1050@60 | 1440×900@60 | 1600×1200@60 | 1680×1050@60 | 1920×1080@60 | 1920×1200@60 | 2048×1152@60 | 2560×816@60
Supported Standards
VGAVGA–UXGA
HDMIHDMI 1.4
Features
EDIDSupported
HDCPSupported
Remote AppAndroid / Windows
Interface7 Buttons with LED indicator
SecurityHole for lock/latch
Power
Input Voltage12 V DC
Max Power0.5 A
Environment
Operating Temperature0 °C – 45 °C
Operating Humidity10 % – 85 %
Physical
WeightNet (Device)0.18 kg
Packaged0.5 kg
Dimensions (W × D × H) Net (Device)98 mm × 92.9 mm × 23.5 mm
Packaged170 mm × 120 mm × 80 mm
Spezifikationen
Product Code Model Description
650-0221-01-0 MSP 221
