Spezifikationen
| Kategorie | Parameter | Wert |
|---|---|---|
| Video | Video Resolutions | Up to 4K 60Hz 4:4:4 |
| Video | HDR Formats/Resolutions | 420, 422, 444 (10 AND 12 DEEP COLOR) HDR10, HDR10+, DOLBY VISION, HLG |
| Video | Color Space | YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500) |
| Video | Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 Supported |
| Video | Deep Color | Up to 16 bit (1080), Up to 12 bit (4K) |
| Video | Down Scaling | 4k to 1080p |
| Audio | Audio Formats Supported HDMI | PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos |
| Audio | Audio Formats Supported Extracted (2CH Port) | PCM 2 CH |
| Distance | HDBaseT (CAT) Distance (4K) | 100 Meters / 330 Feet (Cat 6a) |
| Distance | HDMI In/Out (4k60 4:4:4) | Up to 50 feet (Using Bullet Train HDMI) |
| Distance | HDMI In/Out (W/ AOC Cable) (4k60 4:4:4) | Up to 130 feet (Using Bullet Train AOC) |
| Other | Bandwidth | 18 Gbps (Uses ICT above 10.2 Gbps signals) |
| Other | HDCP | HDCP 2.3 and Earlier |

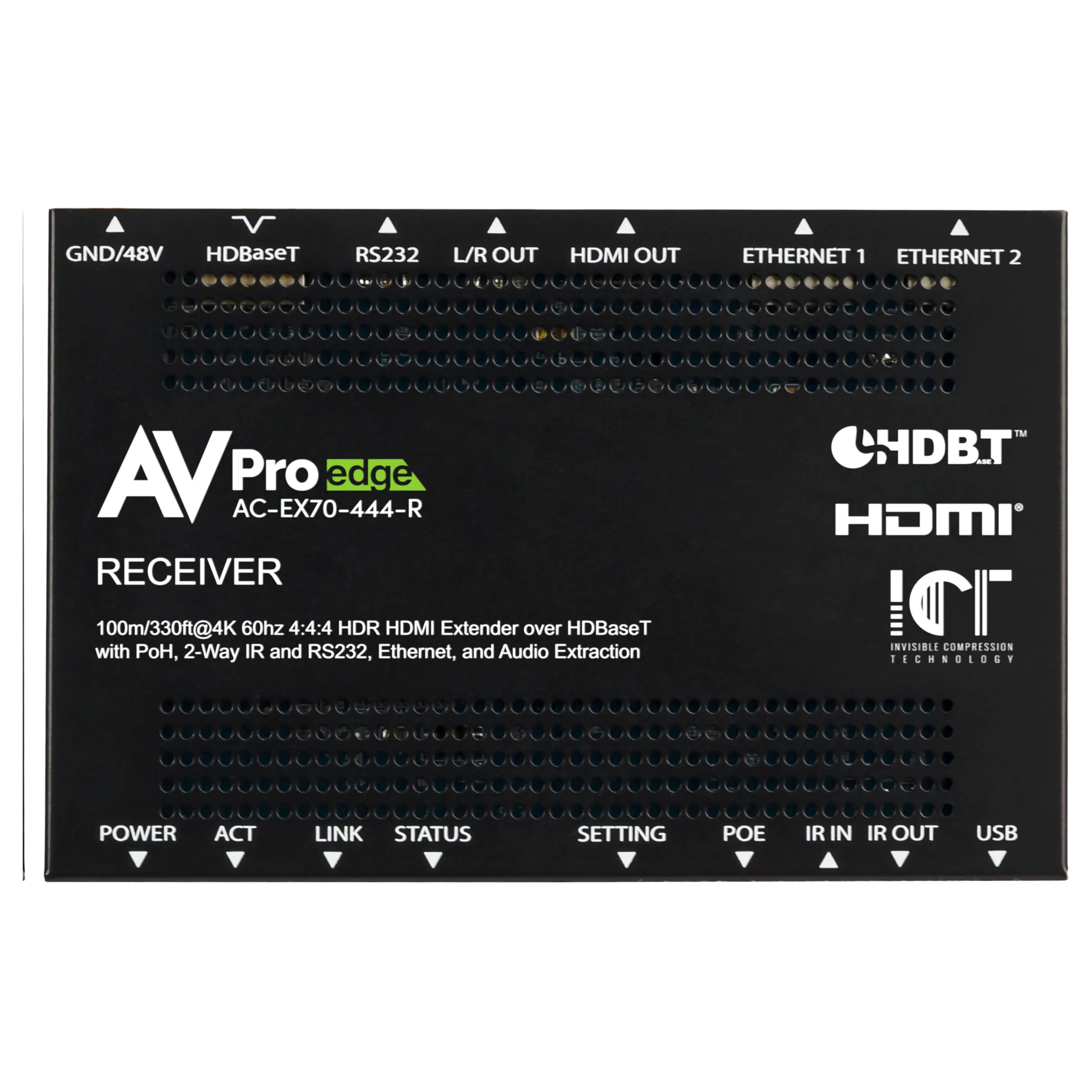

| Ports | HDMI (TX & RX) | Type A |
| Ports | HDBaseT | RJ45 w/ PoH for HDBaseT Receivers |
| Ports | Audio (Extracted Analog) (TX & RX) | 5 PIN Terminal Block (Balanced) |
| Ports | IR TX (TX & RX) | 3.5MM Mono (2 Conductor) |
| Ports | IR RX (TX & RX) | 3.5mm Stereo (3 Conductor) |
| Ports | RS232 (TX & RX) | 3 Pin Terminal Block Each |
| Ports | Power (TX & RX) | 2 Pin Terminal Block Each |
| Ports | Ethernet (TX & RX) | 2x RJ45 Connections Each (10/100) |
| Ports | Firmware (TX & RX) | USB C |
| Environmental | Operating Temperature | 23 to 125°F (-5 to 51°C) |
| Environmental | Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Environmental | Humidity Range | 5-90% RH (No Condensation) |
| Power | Power Consumption (Total) | 12 Watts Max |

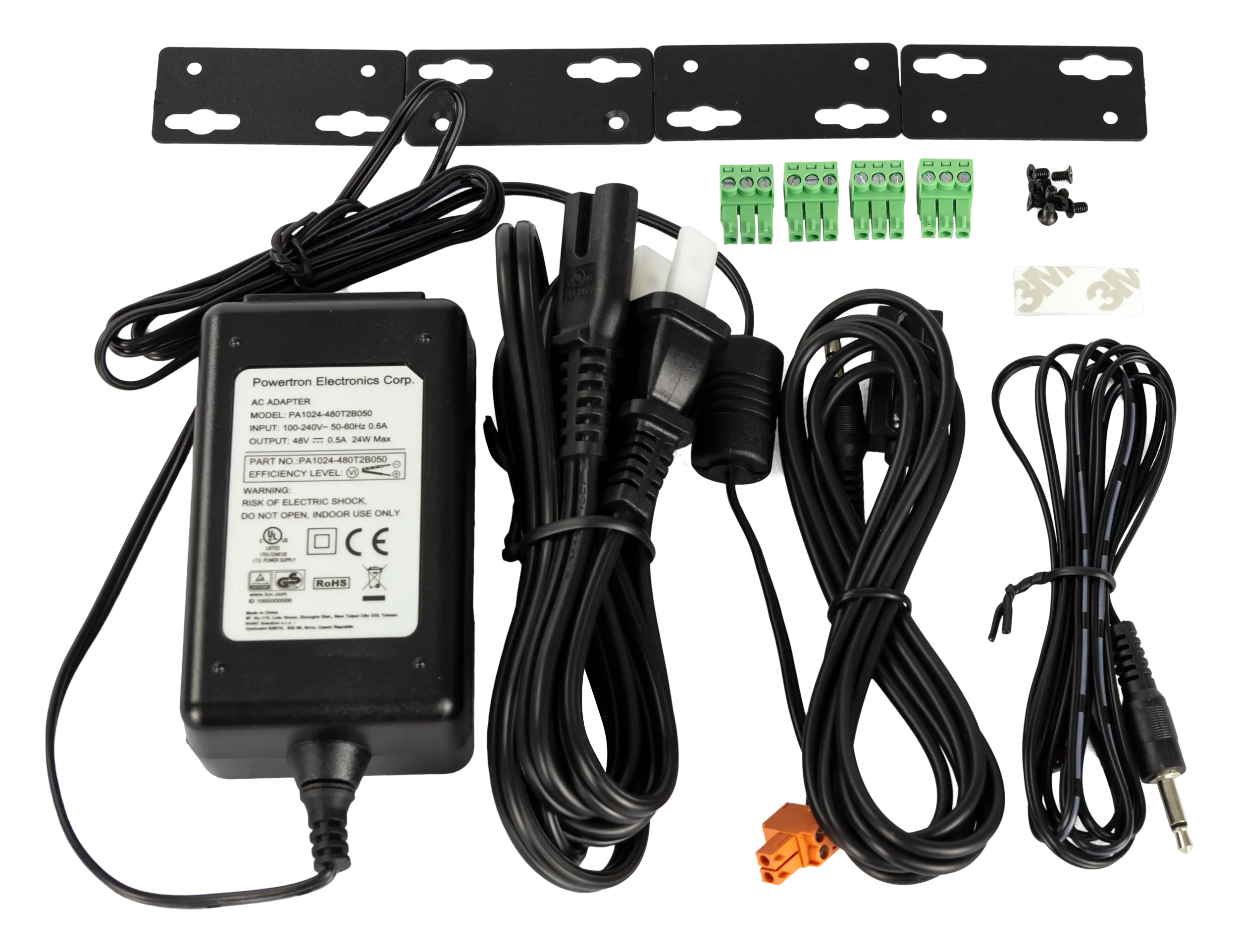

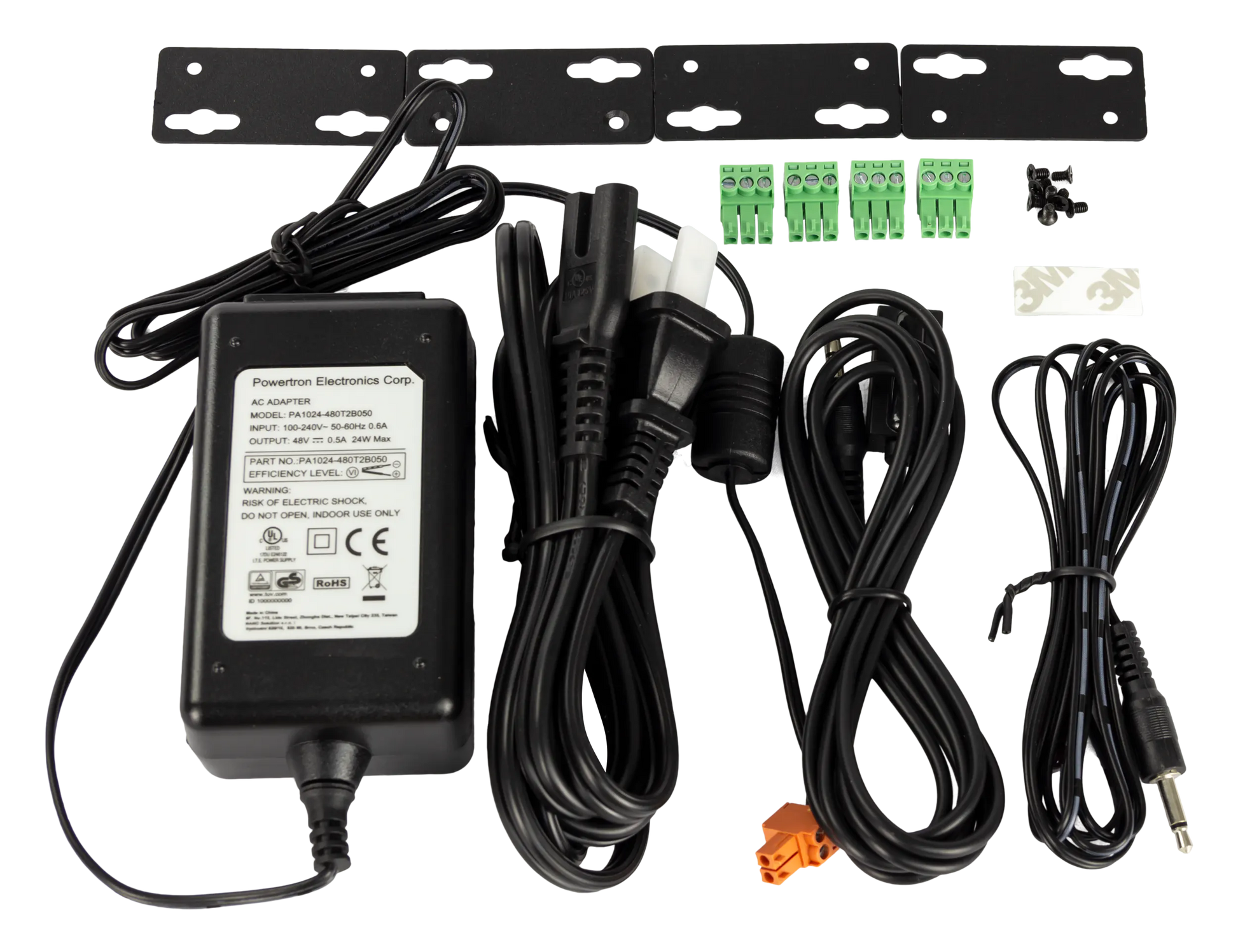

| Power | Power Supply | Input: AC 100-240V ~ 50/60Hz Output: DC 48V 0.5A |
| Dimensions | Dimensions (Unit Only Length/Width/Height) | mm: 103 x 157 x 12 inch: 4.04 x 6.18 x 0.47 |
| Dimensions | Dimensions (Packaged Length/Width/Height) (Kit) | mm: 165 x 203 x 91 inch: 6.5 x 8 x 3.6 |
| Dimensions | Weight (Unit) | 0.4 lbs (0.13 kg) |
| Dimensions | Weight (Packaged) | 2 lbs (0.90 kg) |
| *Specifications subject to change without notice. Mass & dimensions are approximate. | ||
